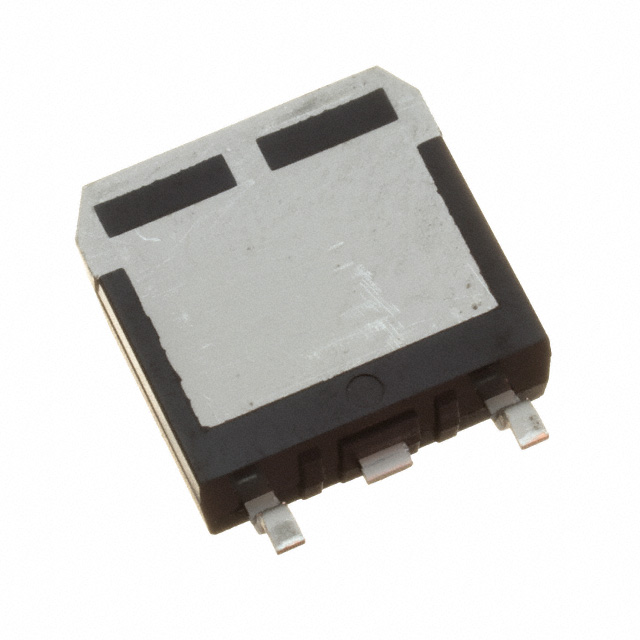

| Model： | APT5020SVRG |
|---|---|
| Product Category： | Single FETs, MOSFETs |
| Manufacturer： | Microsemi Corporation |
| Description： | MOSFET N-CH 500 |
| Encapsulation： | - |
| Package： | Tube |
| Quantity： | 1000 |
| RoHS Status： | |
|
Obtain quotation information
|
Quantity
Price
Total Price
30
$8.6900
$260.7000
| TYPE | DESCRIPTION |
| Mfr | Microsemi Corporation |
| Series | POWER MOS V® |
| Package | Tube |
| Product Status | OBSOLETE |
| Package / Case | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA |
| Mounting Type | Surface Mount |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 26A (Tc) |
| Rds On (Max) @ Id, Vgs | 200mOhm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Supplier Device Package | D3PAK |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 500 V |
| Gate Charge (Qg) (Max) @ Vgs | 225 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 4440 pF @ 25 V |
